What are Beaded Hose Barb Fittings used for?

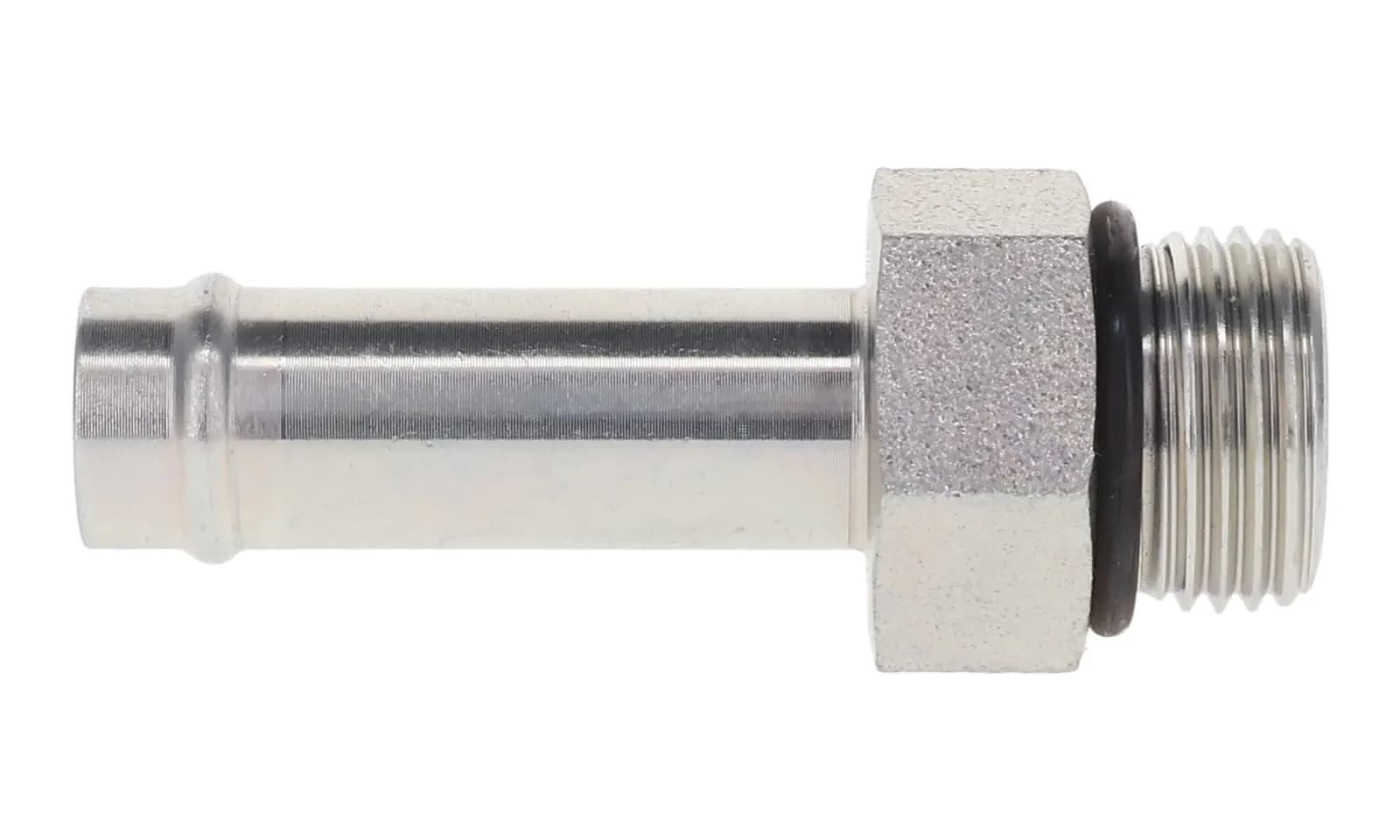

Beaded Hose Barb Fittings

Beaded hose barb fittings are components used in the hydraulic and pneumatic systems to connect flexible hoses to other components, such as pipes, tubes, or machinery. These fittings have a distinctive beaded design that helps secure the hose in place and provides a better seal. Here's a closer look at the features and use of beaded hose barb fittings:

1. Design: The fitting has a barbed end that is inserted into a flexible hose. The barbs are ridges or rings that grip the inside of the hose. The "beaded" part of the name comes from a raised bead around the end of the fitting that works as an additional sealing surface. This bead helps to retain the hose and prevent it from sliding off the fitting.

2. Material: They are typically made from metals such as brass, stainless steel, or other durable materials that can withstand the pressures and environmental conditions typical in hydraulic systems.

3. Sealing Mechanism: For additional sealing, hose clamps are often used over the hose and around the beaded part of the fitting to secure the hose firmly onto the barbs. This helps prevent leaks and disconnection under pressure.

4. Applications: Beaded hose barb fittings are widely used in both low and high pressure hydraulic systems. They are particularly favored for their ability to create a tight connection without the need for additional tools or complex assembly processes. These fittings are common in agricultural equipment, industrial machinery, and automotive systems where flexible hoses are needed.

5. Advantages: The main advantages of beaded hose barb fittings include ease of assembly, good resistance to vibration and pull-off, and an effective seal that minimizes leaks.

These fittings are essential for systems where hoses must be frequently connected and disconnected, or where hoses must flex or move in operation.
